About This Plan
The Timbered Entry and Dramatic Light-Filled Tower is a single-storey Craftsman house plan offering 469m² of living space with 0 bedrooms and 2 bathrooms. This design features covered parking and is built on a standard foundation, making it well suited for a range of South African building sites. Priced at R105 848,75 in South African Rand, this plan is available for immediate digital delivery. Choose from PDF (single or multi-build licence) or CAD files for your architect or engineer to modify. All plans from BH Designs include full construction drawings — floor plans, elevations, cross-sections, electrical and plumbing layouts. Your local professional can review and stamp the drawings for municipal submission under SANS 10400. A compact, efficient design perfect for first-time builders, investors, or lock-up-and-go living.
A fireplace and angled entertainment niche are highlights of the family room.A screened porch off the family room features a fireplace
The deck beyond has a fully-outfitted outdoor kitchen and living area complete with another fireplace.The kitchen has a large island with seating
The dining room is nearby and a door takes you to the large deckThe master suite is on the first floor and has an attractive fireplace and secluded deck access
Two of them have access to the patio

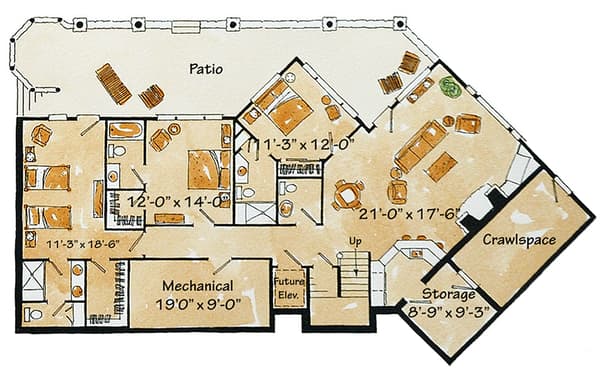

A large common area has a fireplace, wet bar, and entertainment niche and accesses the lower patio through French doors
A small study/office/card room is tucked away behind the bar
A large mechanical room completes the floor.Related Plan: For a larger version with a second floor, see house plan 11585KN (5,045 sq
Plan Specifications
Area
Bedrooms & Bathrooms
Dimensions
Garage
Construction
Designer
What's Included in Your Plan Set
- Floor Plan with dimensions, window & door locations, ceiling heights
- Foundation Plan and ceiling joists layout
- Electrical Plan with outlet, switch and lighting locations
- Front, Rear & Side Elevations showing exterior finishes and roof pitches
- Wall Sections and Framing Details
- Door, Window and Roof Finish Schedules
Not sure? Contact us for advice
We can customise any plan to suit your stand size, lifestyle or local requirements.
Request a QuoteCalculate the cost to build and furnish your home in your area.
Request Report →All prices are in South African Rand (ZAR), excl. VAT. VAT at 15% is added at checkout. Prices subject to change without notice.
