Northwest Craftsman House Plan with Bonus / Media Rooms
About This Plan
The Northwest Craftsman House Plan with Bonus / Media Rooms is a single-storey Craftsman house plan offering 513m² of living space with 5 bedrooms and 4.5 bathrooms. This design features covered parking and is built on a standard foundation, making it well suited for a range of South African building sites. Priced at R106 526,18 in South African Rand, this plan is available for immediate digital delivery. Choose from PDF (single or multi-build licence) or CAD files for your architect or engineer to modify. All plans from BH Designs include full construction drawings — floor plans, elevations, cross-sections, electrical and plumbing layouts. Your local professional can review and stamp the drawings for municipal submission under SANS 10400. With generous living space, this home is ideal for growing families who need room to spread out.
Shake siding lies beneath a multitude of gables on the exterior of this Northwest Craftsman house plan.Step inside to find a formal dining room and den on either side of the foyer
An elegant coffered ceiling rests atop the dining room and a butler's pantry offers a shortcut to the kitchen.From the kitchen, enjoy clean views into the breakfast nook and great room

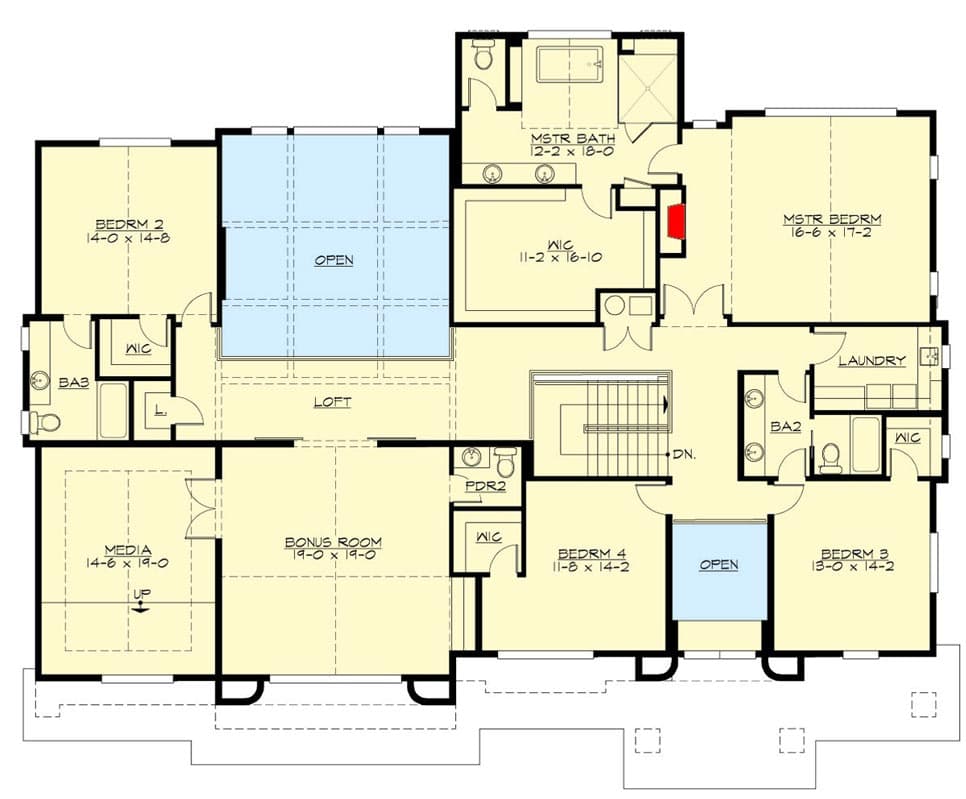

Fireplaces in both the covered patio and great room allow you to cozy up with family and friends when staying in.Four bedrooms, including the master bedroom, are located upstairs
Plan Specifications
Area
Bedrooms & Bathrooms
Dimensions
Garage
Construction
Designer
What's Included in Your Plan Set
- Floor Plan with dimensions, window & door locations, ceiling heights
- Foundation Plan and ceiling joists layout
- Electrical Plan with outlet, switch and lighting locations
- Front, Rear & Side Elevations showing exterior finishes and roof pitches
- Wall Sections and Framing Details
- Door, Window and Roof Finish Schedules
Not sure? Contact us for advice
We can customise any plan to suit your stand size, lifestyle or local requirements.
Request a QuoteCalculate the cost to build and furnish your home in your area.
Request Report →All prices are in South African Rand (ZAR), excl. VAT. VAT at 15% is added at checkout. Prices subject to change without notice.
