Duplex for a Rear Up-Sloping Lot - 3 Bedroom Units Each 1285 Sq Ft
About This Plan
The Duplex for a Rear Up-Sloping Lot - 3 Bedroom Units Each 1285 Sq Ft is a single-storey Craftsman house plan offering 119m² of living space with 3 bedrooms and 2 bathrooms. This design features covered parking and is built on Slab, making it well suited for a range of South African building sites. The footprint measures 100 wide by 25' 8" deep, so you can check it fits your erf before purchasing. Priced at R75 533,67 in South African Rand, this plan is available for immediate digital delivery. Choose from PDF (single or multi-build licence) or CAD files for your architect or engineer to modify. All plans from BH Designs include full construction drawings — floor plans, elevations, cross-sections, electrical and plumbing layouts. Your local professional can review and stamp the drawings for municipal submission under SANS 10400. A practical layout that balances everyday living with enough space for the whole family.

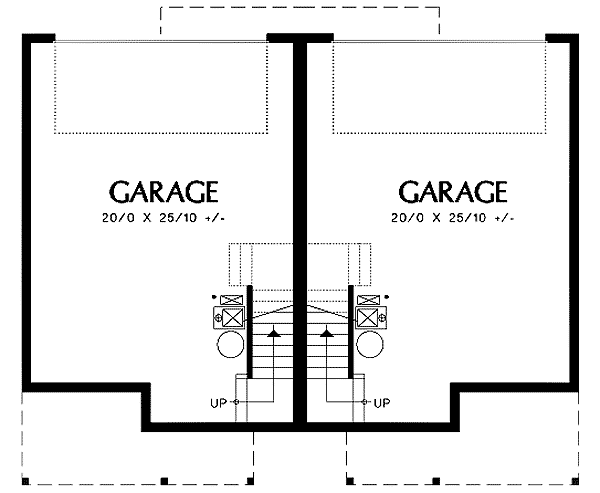

Plan this charming duplex for sloping lots - the double garage tucks into the hillside and the living space sits above
Reach the main floor via a staircase in the garage or from street-level at the lovely covered porch
The living room has a nine-foot ceiling, corner fireplace, box-bay window and built-in media center
The dining room is also graced by a nine-foot ceiling and has two box-bay windows
The kitchen includes an island and a pantry.Three bedrooms and a laundry alcove are found upstairs
Bedrooms 2 and 3 have the use of a full bath with a hall linen closet
The master salon is vaulted and has a walk-in closet and full bath.
Plan Specifications
Area
Bedrooms & Bathrooms
Dimensions
Garage
Construction
Designer
What's Included in Your Plan Set
- Floor Plan with dimensions, window & door locations, ceiling heights
- Foundation Plan and ceiling joists layout
- Electrical Plan with outlet, switch and lighting locations
- Front, Rear & Side Elevations showing exterior finishes and roof pitches
- Wall Sections and Framing Details
- Door, Window and Roof Finish Schedules
Not sure? Contact us for advice
We can customise any plan to suit your stand size, lifestyle or local requirements.
