3 Bed Angled Ranch with Finished Lower Level

3 Bed Angled Ranch with Finished Lower Level — exterior
Click to expand

About This Plan

The 3 Bed Angled Ranch with Finished Lower Level is a single-storey Craftsman house plan offering 354m² of living space with 3 bedrooms and 2.5 bathrooms. This design features covered parking and is built on a standard foundation, making it well suited for a range of South African building sites. Priced at R79 327,29 in South African Rand, this plan is available for immediate digital delivery. Choose from PDF (single or multi-build licence) or CAD files for your architect or engineer to modify. All plans from BH Designs include full construction drawings — floor plans, elevations, cross-sections, electrical and plumbing layouts. Your local professional can review and stamp the drawings for municipal submission under SANS 10400. A practical layout that balances everyday living with enough space for the whole family.

This 3 bed ranch house plan has attractive shingle siding and beautiful wood detailing with decorative trusses atop the three front gables

The covered entry has twin columns that are set in stone bases.The 3-car garage is set at an angle to help the home fit on narrower lots

The lower level has access to the back yard making this a great choice for down-sloping lots.The home has two entrances: a formal entry into the foyer and an informal entry into the mud room

The foyer takes you directly to the large, open great room and kitchen-dining area

From the great room, you'll have an excellent view of both the backyard and the main level's deck

The dining area has an alcove for a hutch

At the opposite end of the dining area, doors open onto a large.The master suite has a picture window giving you a bird's eye view of the back yard

The bathroom features a spa tub, private toilet stall, a tiled shower and his-and-her sinks with an enormous counter

To either side of the sinks are entries into a walk-in closet.By the family entrance you'll find your laundry

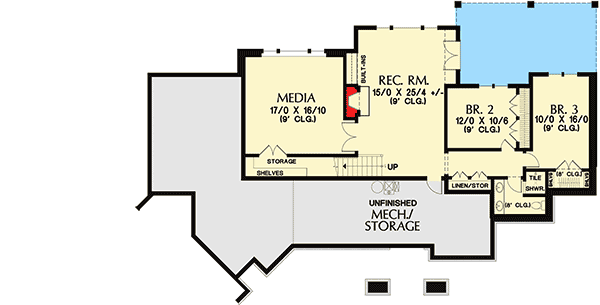

To the left is a media room

It also features two bedrooms, a full bath and a large storage area that gives you direct access to the utility area.

Plan Specifications

Area

Heated Area354 m²
(Original sq ft)3 806 sq ft

Bedrooms & Bathrooms

Bedrooms3
Bathrooms2.5

Dimensions

Width100'
Depth
Floors1

Garage

Garage SpacesNone

Construction

Foundation
Exterior Walls

Designer

Designer CodeAM
StylesCraftsman, Northwest

What's Included in Your Plan Set

  • Floor Plan with dimensions, window & door locations, ceiling heights
  • Foundation Plan and ceiling joists layout
  • Electrical Plan with outlet, switch and lighting locations
  • Front, Rear & Side Elevations showing exterior finishes and roof pitches
  • Wall Sections and Framing Details
  • Door, Window and Roof Finish Schedules
