Tudor Triplex House Plan with Full-Floor Units - 2 Beds Each
About This Plan
The Tudor Triplex House Plan with Full-Floor Units - 2 Beds Each is a single-storey Tudor house plan offering 145m² of living space with 2 bedrooms and 6 bathrooms. This design features covered parking and is built on a standard foundation, making it well suited for a range of South African building sites. Priced at R67 844,81 in South African Rand, this plan is available for immediate digital delivery. Choose from PDF (single or multi-build licence) or CAD files for your architect or engineer to modify. All plans from BH Designs include full construction drawings — floor plans, elevations, cross-sections, electrical and plumbing layouts. Your local professional can review and stamp the drawings for municipal submission under SANS 10400. A compact, efficient design perfect for first-time builders, investors, or lock-up-and-go living.
This gorgeous triplex home plan has marvelous Tudor detailing.The lower level unit has 1,561 sq
of living, the main floor unit has 1,305 sq
of living, and the upper unit has 2,185 sq

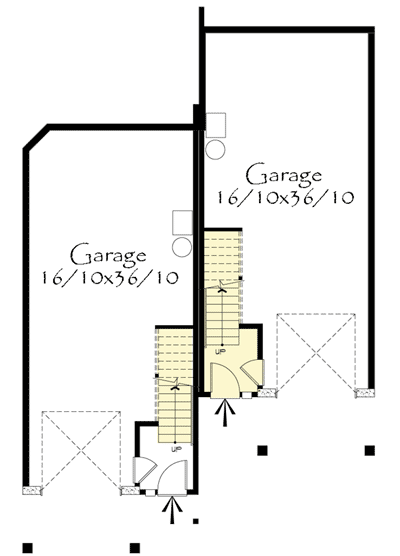

of living.Related Plan: Get a multi-family Tudor style duplex house plan with 85053MS.
Plan Specifications
Area
Bedrooms & Bathrooms
Dimensions
Garage
Construction
Designer
What's Included in Your Plan Set
- Floor Plan with dimensions, window & door locations, ceiling heights
- Foundation Plan and ceiling joists layout
- Electrical Plan with outlet, switch and lighting locations
- Front, Rear & Side Elevations showing exterior finishes and roof pitches
- Wall Sections and Framing Details
- Door, Window and Roof Finish Schedules
Not sure? Contact us for advice
We can customise any plan to suit your stand size, lifestyle or local requirements.
Request a QuoteCalculate the cost to build and furnish your home in your area.
Request Report →All prices are in South African Rand (ZAR), excl. VAT. VAT at 15% is added at checkout. Prices subject to change without notice.
