Graceful Arches
About This Plan
The Graceful Arches is a single-storey European house plan offering 414m² of living space with 0 bedrooms and 3.5 bathrooms. This design features covered parking and is built on a standard foundation, making it well suited for a range of South African building sites. Priced at R92 096,88 in South African Rand, this plan is available for immediate digital delivery. Choose from PDF (single or multi-build licence) or CAD files for your architect or engineer to modify. All plans from BH Designs include full construction drawings — floor plans, elevations, cross-sections, electrical and plumbing layouts. Your local professional can review and stamp the drawings for municipal submission under SANS 10400. A compact, efficient design perfect for first-time builders, investors, or lock-up-and-go living.
A unique blend of stone and stucco siding, columns and graceful arches creates a design that's sure to stand out in any neighborhood
An incredible view of the back yard through two-story windows awaits you as you enter
The kitchen, hearth room and nook were carefully crafted to create a casual living area that is functional and comfortable
The great room features a fire place that's see-through to the hearth room, built-in cabinets and beamed ceilings
The master suite pampers with a corner jucuzzi tub, spacious walk-in closet and trayed ceiling

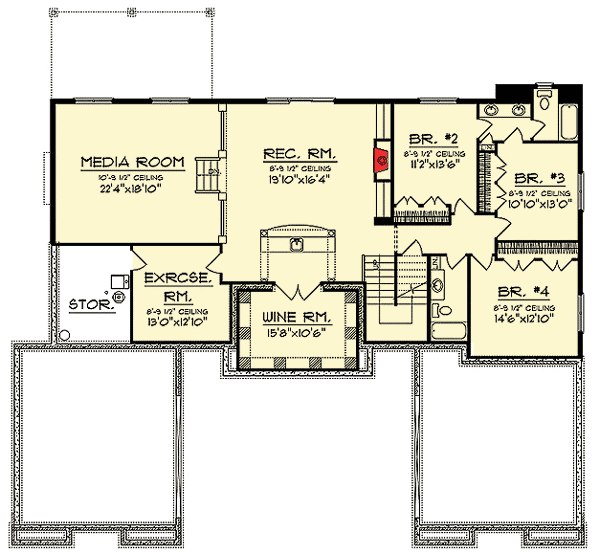

Downstairs you'll find enough space to finish three bedrooms, a large recreation room, wine cellar, and media room
Finally, four garage stalls are split into pairs found on each side of the home.
Plan Specifications
Area
Bedrooms & Bathrooms
Dimensions
Garage
Construction
Designer
What's Included in Your Plan Set
- Floor Plan with dimensions, window & door locations, ceiling heights
- Foundation Plan and ceiling joists layout
- Electrical Plan with outlet, switch and lighting locations
- Front, Rear & Side Elevations showing exterior finishes and roof pitches
- Wall Sections and Framing Details
- Door, Window and Roof Finish Schedules
Not sure? Contact us for advice
We can customise any plan to suit your stand size, lifestyle or local requirements.
Request a QuoteCalculate the cost to build and furnish your home in your area.
Request Report →All prices are in South African Rand (ZAR), excl. VAT. VAT at 15% is added at checkout. Prices subject to change without notice.
